Name: Atlas 408SL 8,000 lb. Super Deluxe 4-Post Lift
Price: 3329 USD

Deluxe 8,000 lb. Portable Hobbyist 4-Post Lift

The Atlas 408SL super deluxe portable vehicle storage lift is designed for those car enthusiasts who demand the absolute best look and superior quality. The 408SL has all the great features of our Atlas Garage Pro Series 4 post hobbyist lifts, but incorporates many features found only on our Atlas commercial grade 4-post lifts.

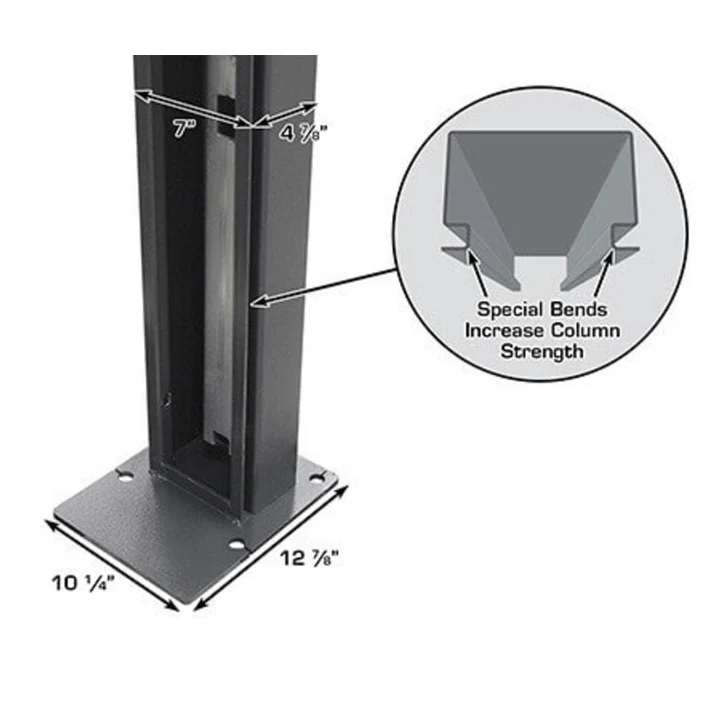

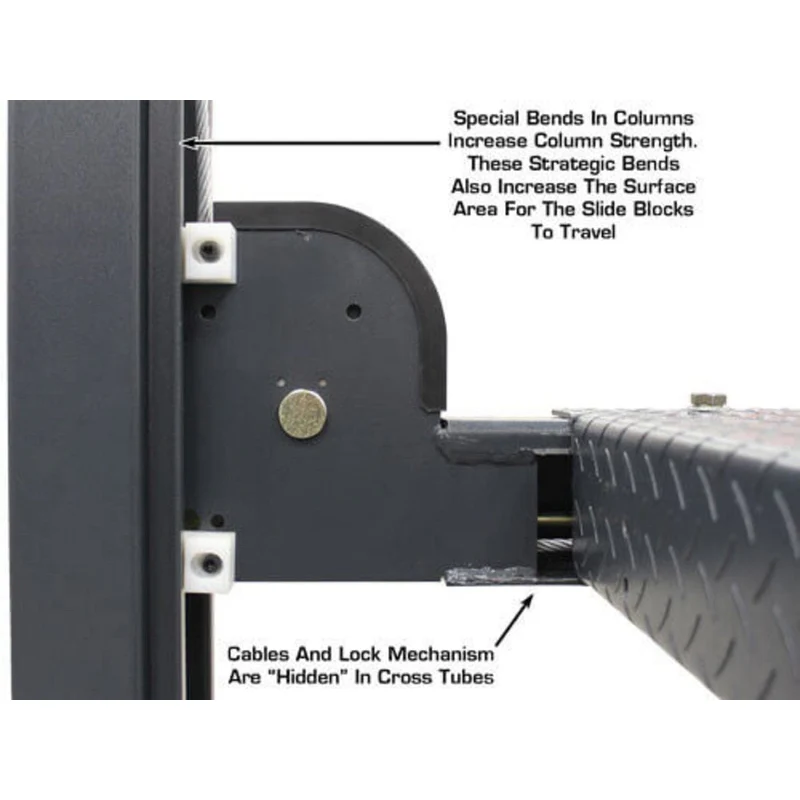

All columns incorporate two special bends which help to increase the column strength. These strategic bends also increase the surface area for the slide block to travel. Horizontal cables are hidden inside of the cross tubes. Professional grade wheel covers are used to eliminate almost all exposure of cables and the double lock system. The Atlas 408SL has more metal and weighs over 100 lbs. more than other hobbyist lifts based upon the same column and runway configuration.

The Atlas 408SL is built to the same commercial lift standards as our Atlas 412 and Atlas 414 four post lifts, but also offers portability (Caster Kit included).

If you are looking for a lift that stands out from all the other storage lifts sold in the USA, then take a good look at the Atlas 408SL.

Many customers who purchased this lift also purchased the Atlas RJ35.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Features

8,000 lb. Capacity
Free Standing/Portable Design
Diamond Plated Runways
Single point lock release
Columns incorporate two special bends to increase column strength.
Larger Column Size

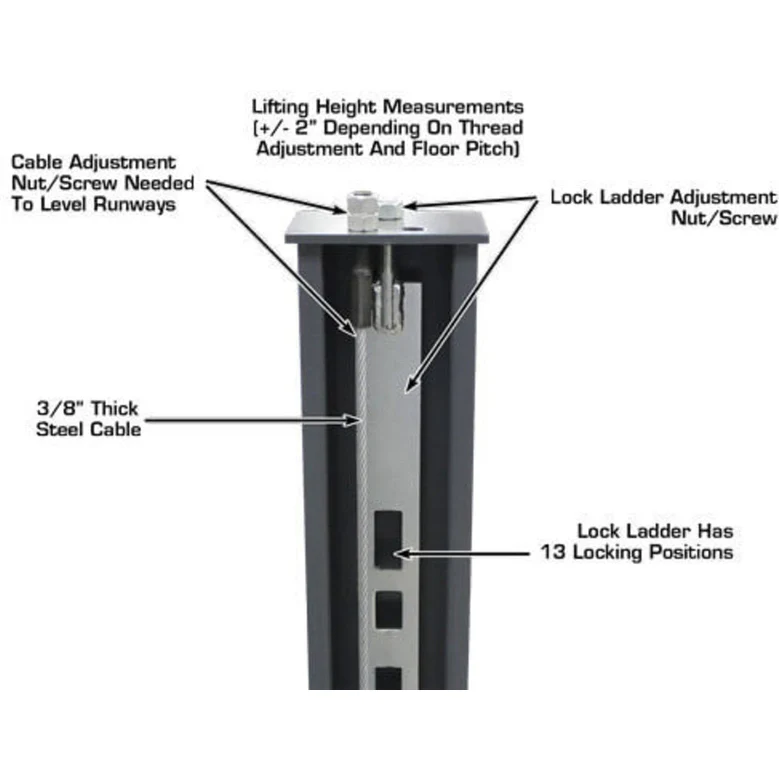

Double Lock Safety System
Higher quality powder coating (steel gray color)

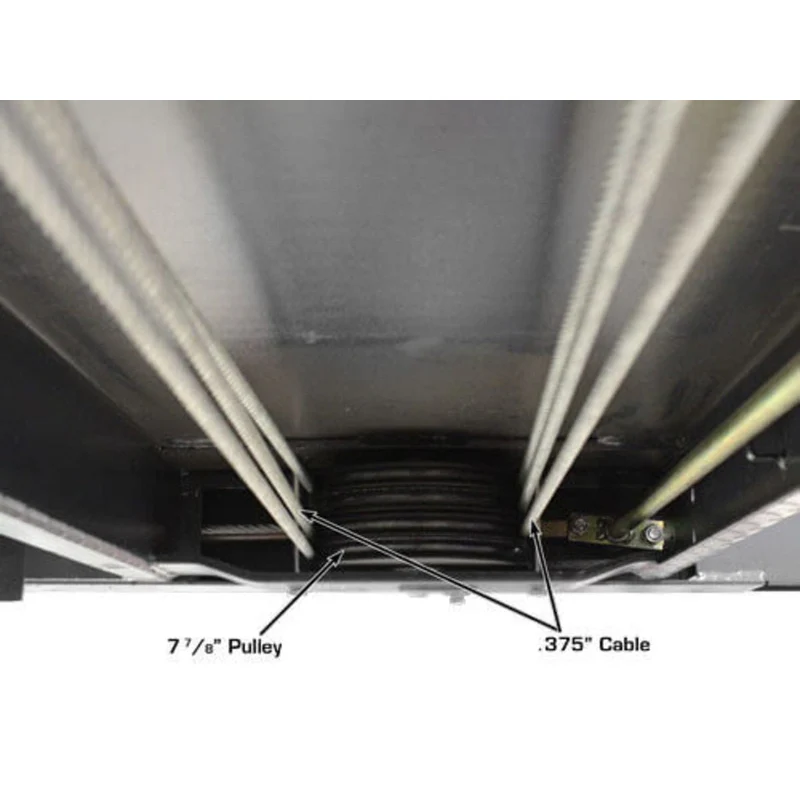

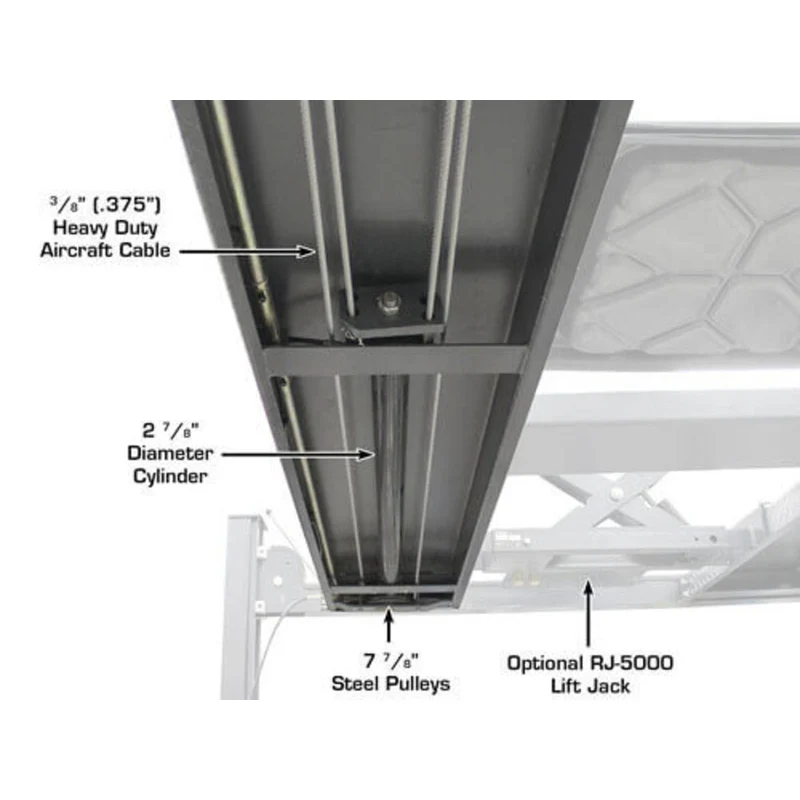

Cables hidden in Columns & Cross Tubes
Commercial Grade Wear Blocks
Power Unit can be positioned at any corner
Wider Access Between Runways
Caster Kit With Polyurethane Wheels Included

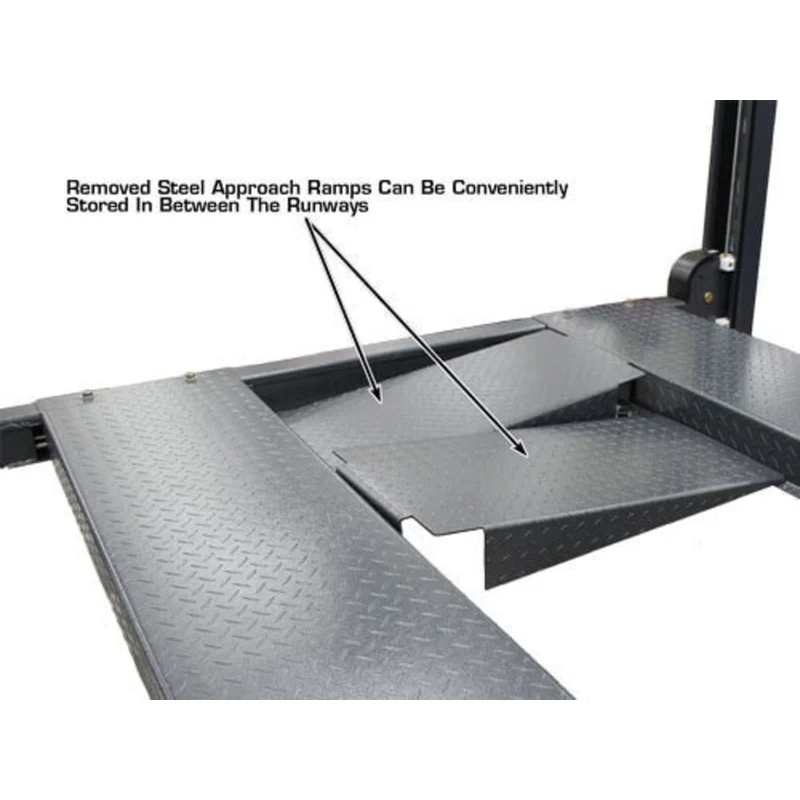

Steel Approach Ramps Included

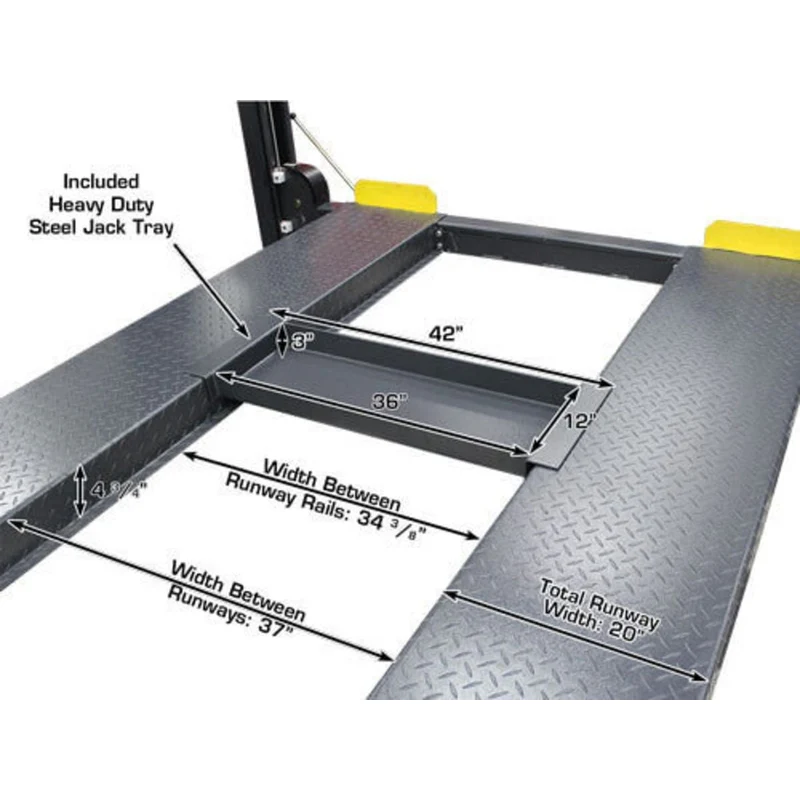

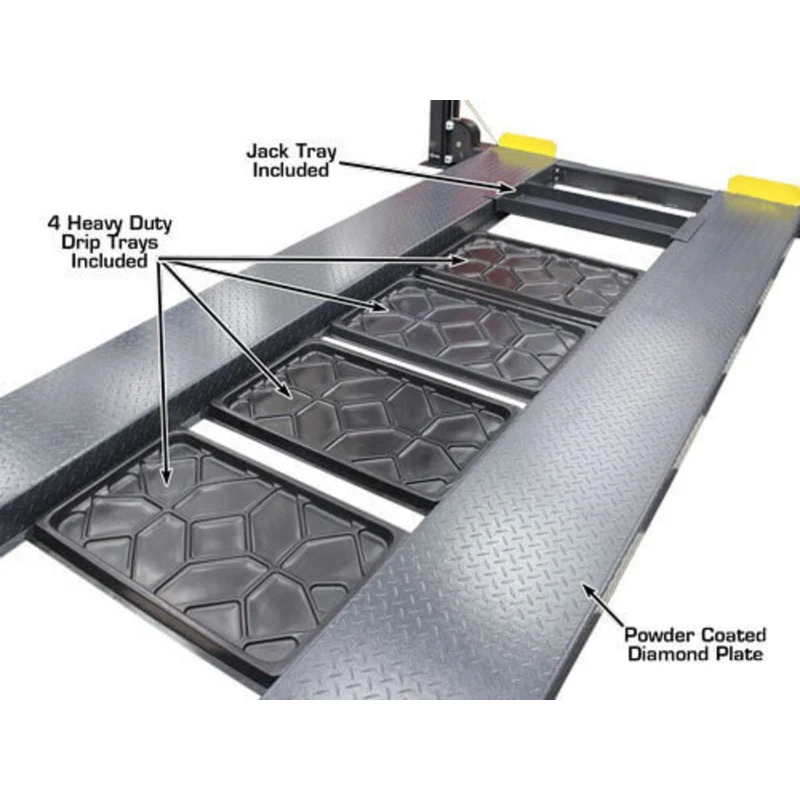

Steel Jack Tray Included
Four Plastic Drip Trays Included
Wheel Stops Included
Anchor Bolts Optional (Sold Separately)
110volt Electric Operation PLUG NOT INCLUDED (Requires 30amp Breaker)
Shipping Weight: 1,965 lbs.
2 yr Structural 2 yr Hydraulic Warranty Parts Only
Specifications-

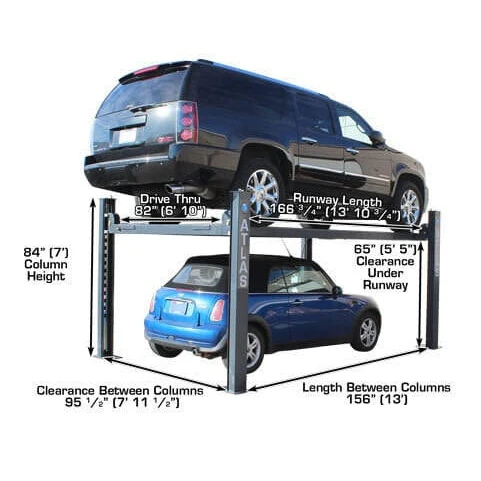

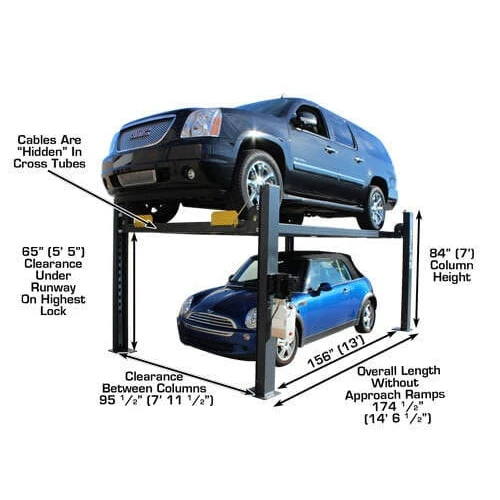

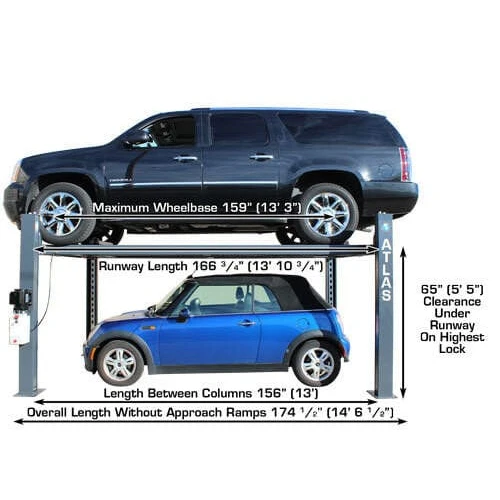

Atlas 408SL Specifications
Capacity	8,000 lb.
Lifting Height To Top Of Runway	73 1/4" (6' 1 1/4") (Not on Lock)
Clearance Under Runways	68 1/2 (5' 8 1/2")
Height Of Columns	83" (7' 11")

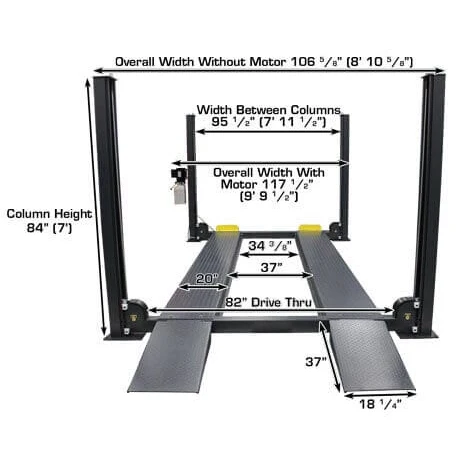

Overall Width (Without Motor)	109 5/8" (9' 1 5/8")
Overall Width (With Motor)	117 1/2" (9' 9 1/2")
Overall Length With Approach Ramp	205 3/8" (17' 1 3/8")
Approach Ramp	35" (2' 11")
Runway Width	21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
Runway Length	166 3/4" (13' 10 3/4")
Runway Thickness	4 3/4"
Width Between Runways	37 1/4" (3' 1 1/4")
Width Between Runway Rails	34 3/8" (2' 10 3/8")
Outside Runway To Outside Runway	74 3/4" (6' 2 3/4")

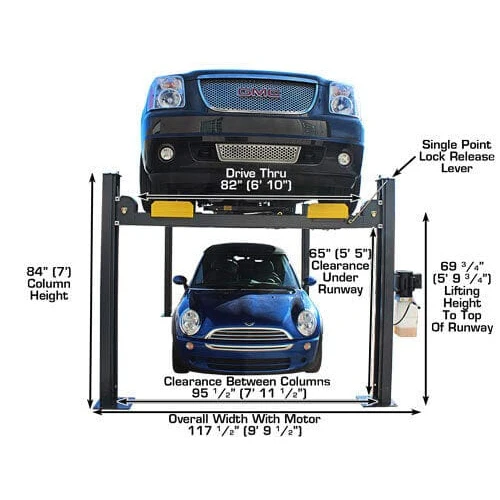

Clearance Between Columns	95 1/2" (7' 11 1/2")

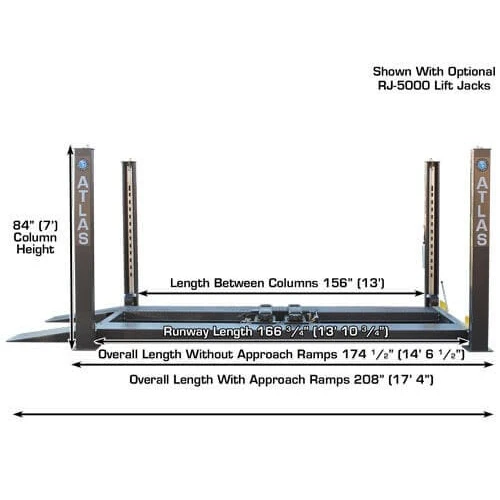

Length Between Columns	156" (13')

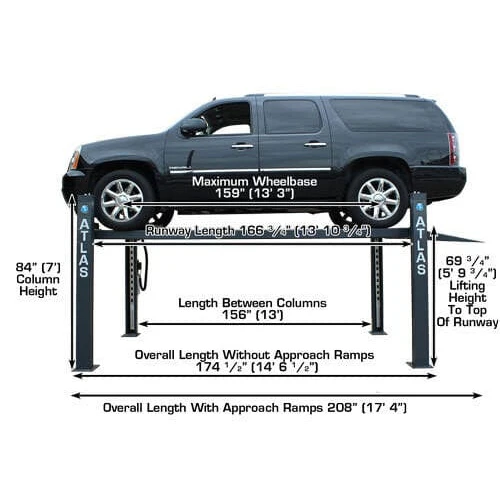

Maximum Wheel Base	154" (12' 10")
Drive Thru (Outside Of Tire To Outside Of Tire)	82" (6' 10")
Motor/Electrical Requirement	110 Volt, 30 AMP BREAKER REQUIRED
Shipping Weight	1,965 lb.
