Name: Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift
Price: 1349 USD

Atlas Baseplate 9,000lb. Capacity 2-Post Lift

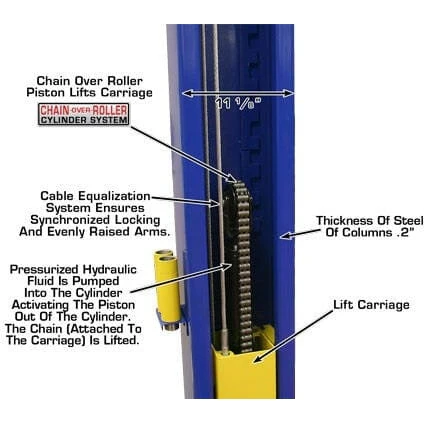

The Atlas 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 (9 feet 3 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas 9KBPX chain over roller lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for Mr. Homeowner or small commercial shop looking to service cars, SUVs and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Features

9,000 lb. Capacity
Baseplate, Open-Top Style Lift
Designed For Low Ceiling Clearance 9' 3 Columns

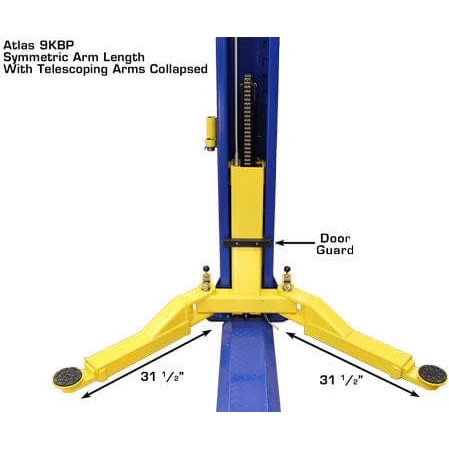

Symmetric Arms
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System (SLS)
Free 8 Piece Truck Adapter Set
Automatic Arm Restraints

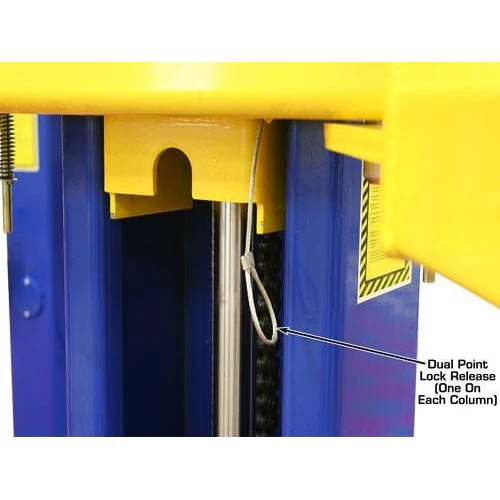

Dual Point Lock Release
Mounting Hardware Included
Shipping Weight: 1,400 lbs.
2 yr Structural 1 yr Hydraulic Warranty Parts Only

Atlas XH-9KBPX Specifications

Capacity	9,000 LB.

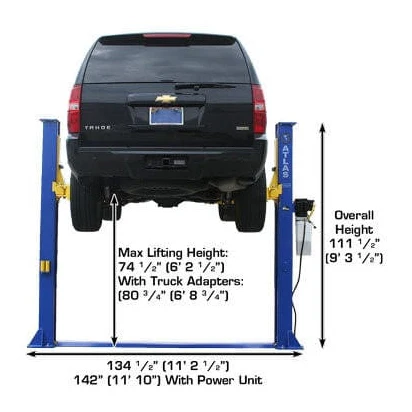

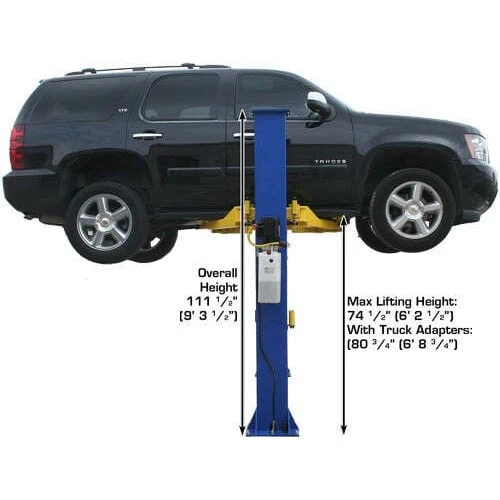

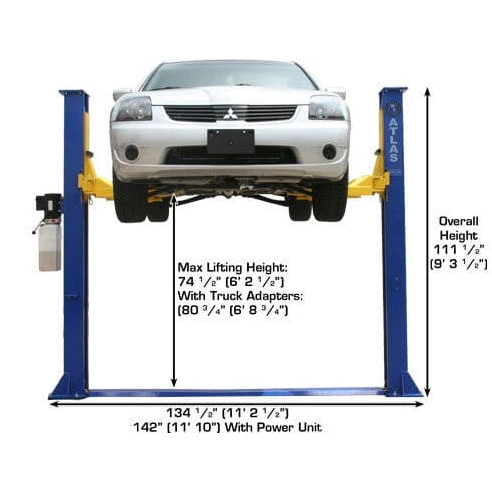

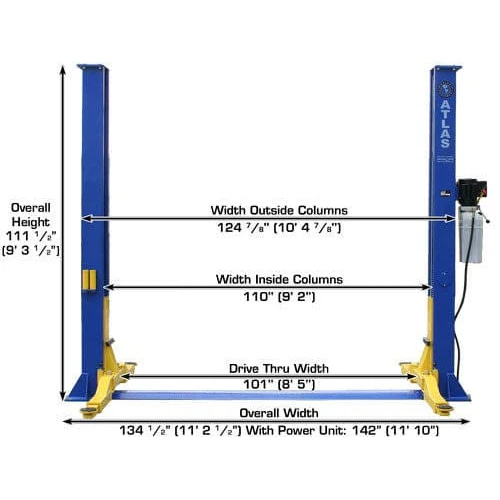

Overall Height	111 1/2" (9 3 1/2")
Overall Floor Width	134 1/2" (11 2 1/2")
Outside Column to Outside Column	124 7/8" (10 4 7/8")

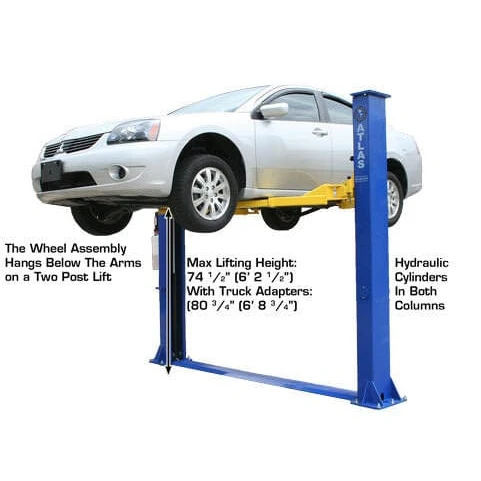

Maximum Lift Height (Without Adapters)	74 1/2"
Maximum Lift Height (With Adapters)	81"
Minimum Arm Height	4"
Inside Column	110 (9 2)
Drive Thru	101 (8 5)
Column Size	7 1/4" x 11"
Column Thickness of Steel	5mm

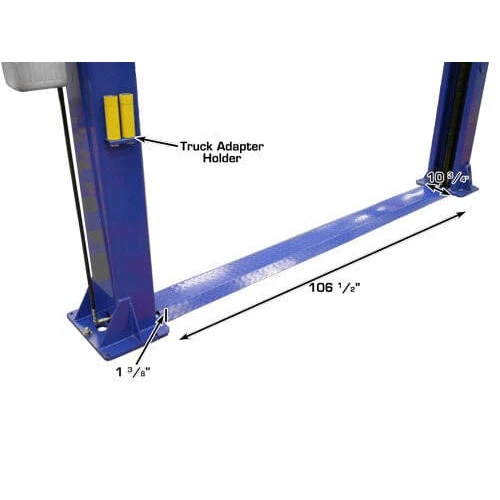

Base Of Lift	14 1/4" x 18 1/4"

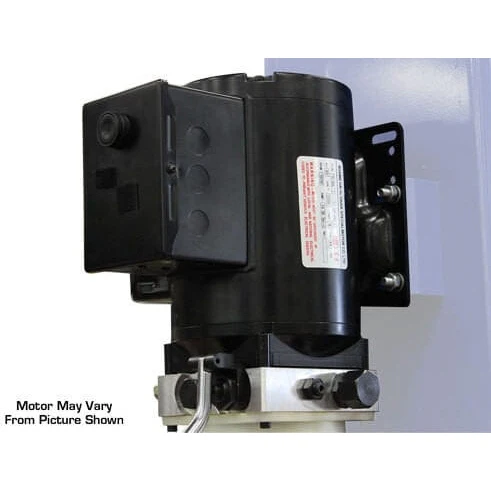

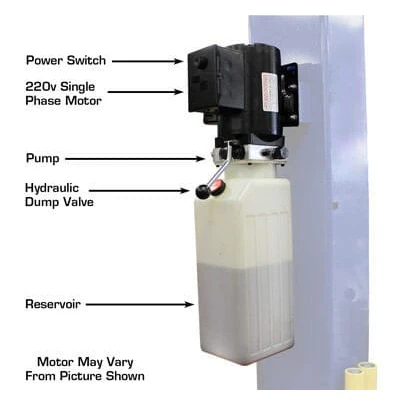

Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,400 LBS.
Adapter Heights	4 Each 1.5, 5
Arm Hole/Adapter Peg Size	1.5
Requires a minimum of 4" of concrete with a 3000 psi. rating
