Name: Atlas BP10000X 10,000 lb Baseplate 2 Post Lift
Price: 1949 USD

The Atlas BP10000X Commercial Grade Lift

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Features

10,000 lb. Capacity
Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 111 7/8″ (9′ 3 7/8″)

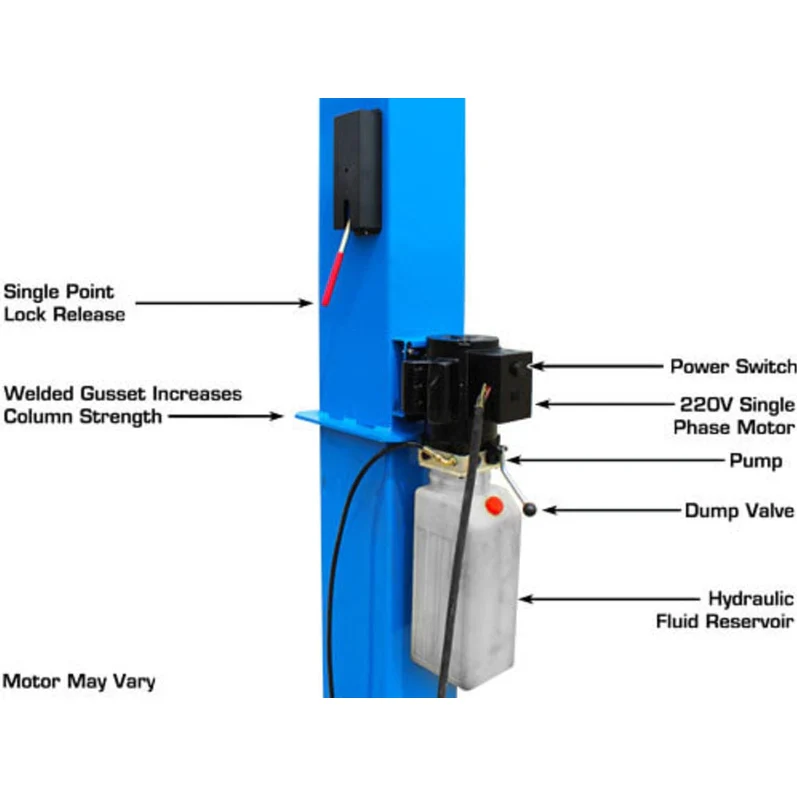

Single-Point Lock Release Allows Both Columns To Be Disengaged
Simultaneously

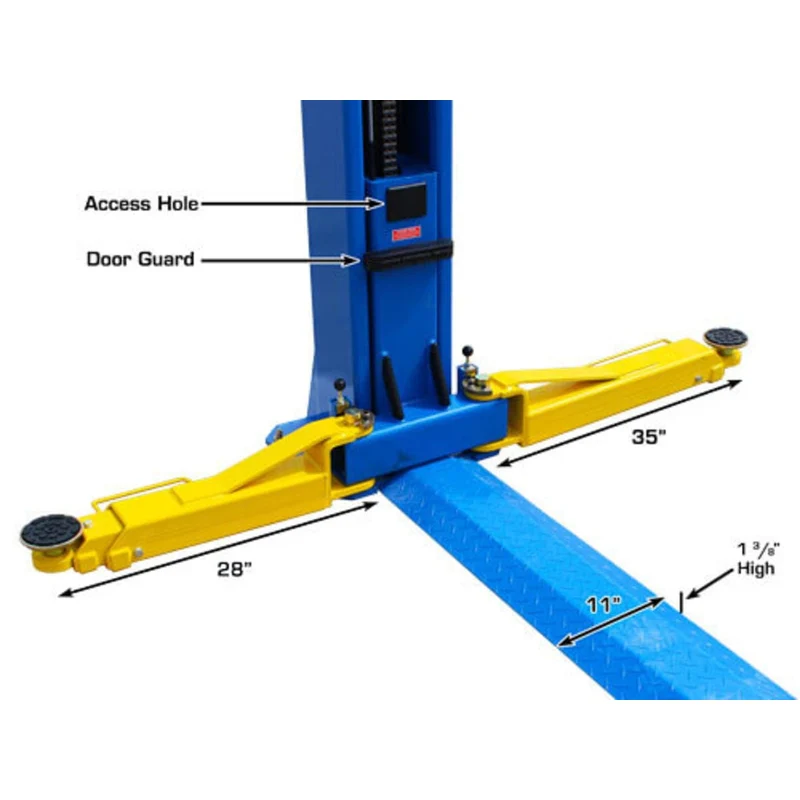

Super-Symmetric Arms

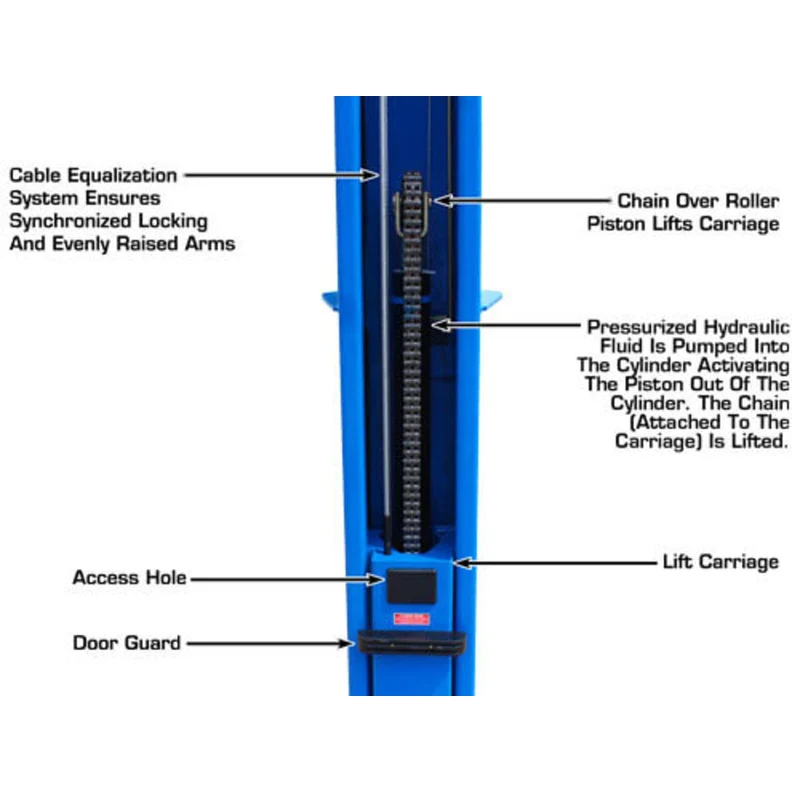

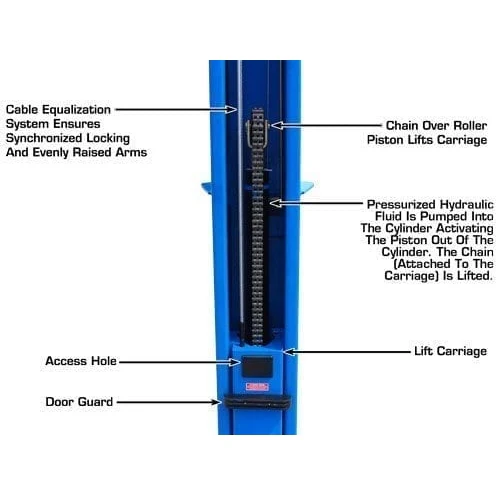

Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
Welded Support Gussets Increase Column Strength.
Automatic Arm Restraints
Powder Coat Finish

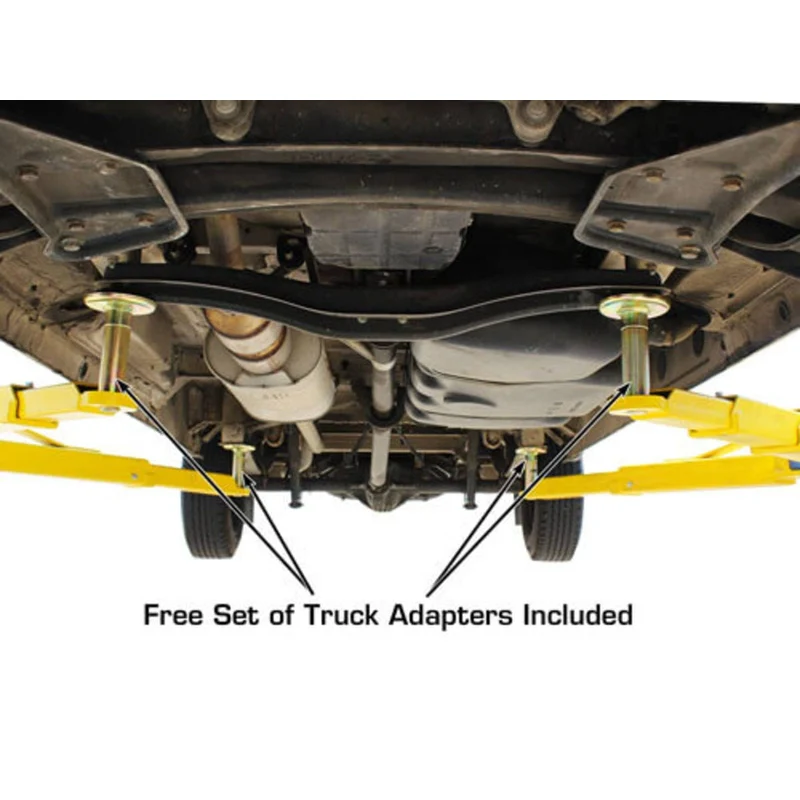

Free 12 Piece Truck Adapter Set
Shipping Weight: 1,640 LBS.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-BP10000X Specifications

Capacity	10,000 LB.

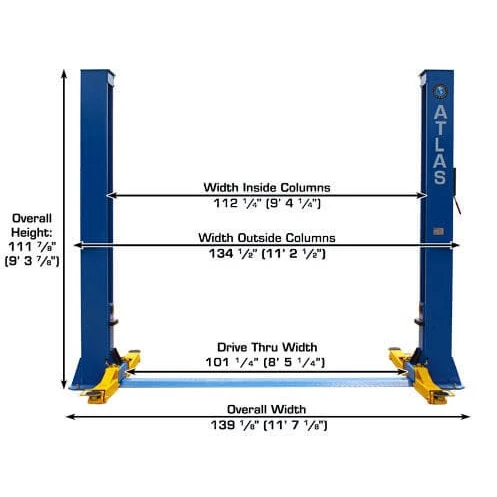

Overall Height	111 7/8" (9’ 3 7/8")

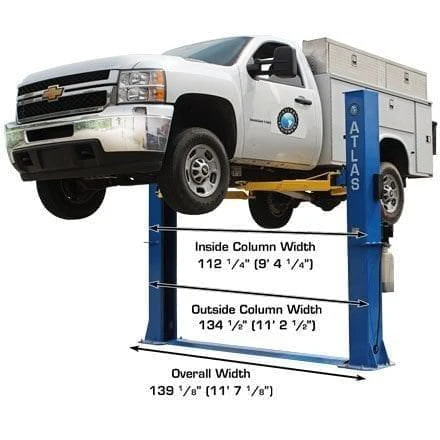

Overall Floor Width	139 1/8" (11’ 7 1/8")
Outside Column to Outside Column	134 1/2" (11’ 2 1/2")

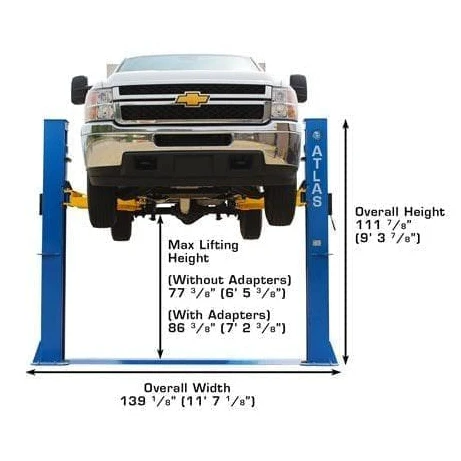

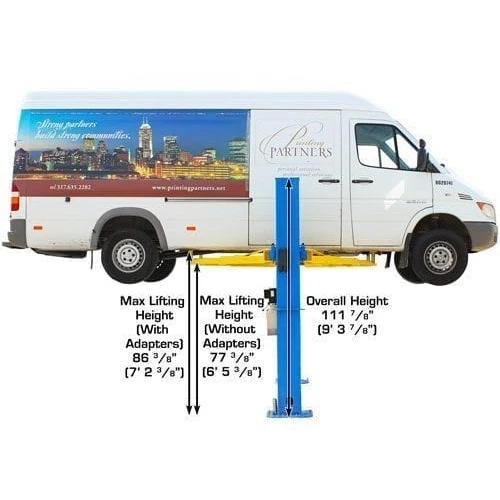

Maximum Lift Height (Without Adapters)	77 3/8"
Maximum Lift Height (With Adapters)	86 3/8"
Minimum Arm Height	4"

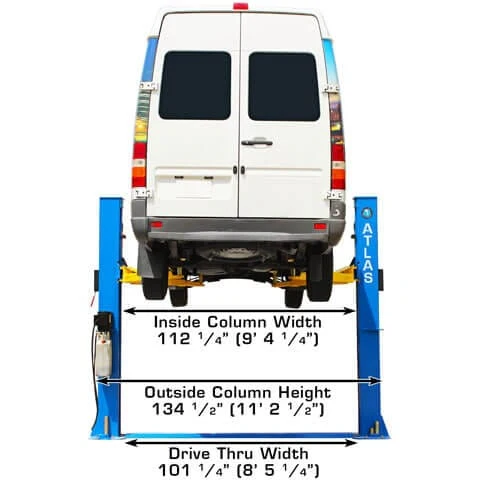

Inside Column	112 1/4” (9’ 4 1/4”)

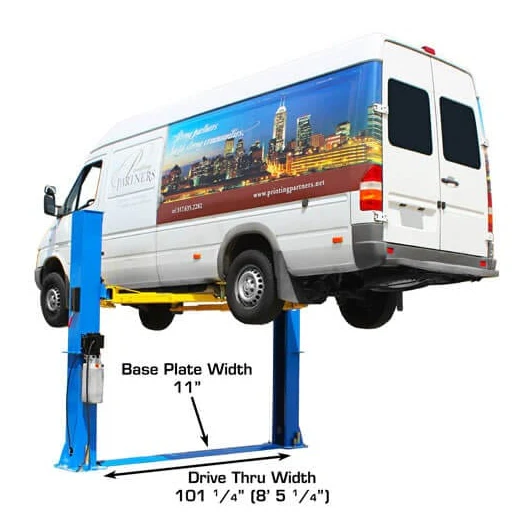

Drive Thru	101 1/4” (8’ 5 1/4”)
Column Size	9 1/2" x 11"
Column Thickness of Steel	6mm
Base Of Lift	17 1/2" x 21 1/2"
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,640 LBS.
Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”
